Site rights and approvals
Review plot constraints, vehicle circulation, utilities, maintenance access and existing operations. Evidence: survey, concept layout, utility assessment and interface responsibilities.
CNG infrastructure · Nigeria
CNG station configurations
Explore reference CNG station packages from 500 to 3,000 m³/h. Compare the listed components, understand the system interfaces and test an indicative operating scenario.
Gas ecosystem
Our gas supply and distribution concept
Explore how we could connect gas supply, storage, transport and customer facilities.
Explore our gas ecosystem ↗Last updated: Our current development plan and technical references.
Blackfield Energies
Operating assumptions
| Operating assumptions | Medium station | High-capacity station |
|---|---|---|
| Initial module (m³/h) | 180 | 400 |
| Gross installed cost (USD) | 180,000 | 360,000 |
| Mature annual volume (scm) | 550,000 | 1,200,000 |
| Starting selling price (USD/scm) | 0.85 | 0.85 |
| Starting gas/logistics cost (USD/scm) | 0.52 | 0.52 |
USD price/cost escalation: 3% annually. Station OPEX: 12% of revenue; corporate/technology: 4%; maintenance: 2%; marketing: 2.5%. Operating calendar: 16 hours/day, 330 days/year. These are model assumptions.
Financial deployment starts with 180 m³/h medium and 400 m³/h high-capacity modules, expandable toward 1,100 and 2,400 m³/h. The larger reference packages below are not the initial installed capacities used by the model. The 500 m³/h options are outside the modelled 105/45 mix.
Our financial plan — references: Assumptions!B17:B39, K52:K53 · Unit Economics!B5:C17
Blackfield Energies
Configurations
We use these configurations as design references. The 500 m³/h options sit outside our current financial station mix. We will confirm final specifications with suppliers before procurement.

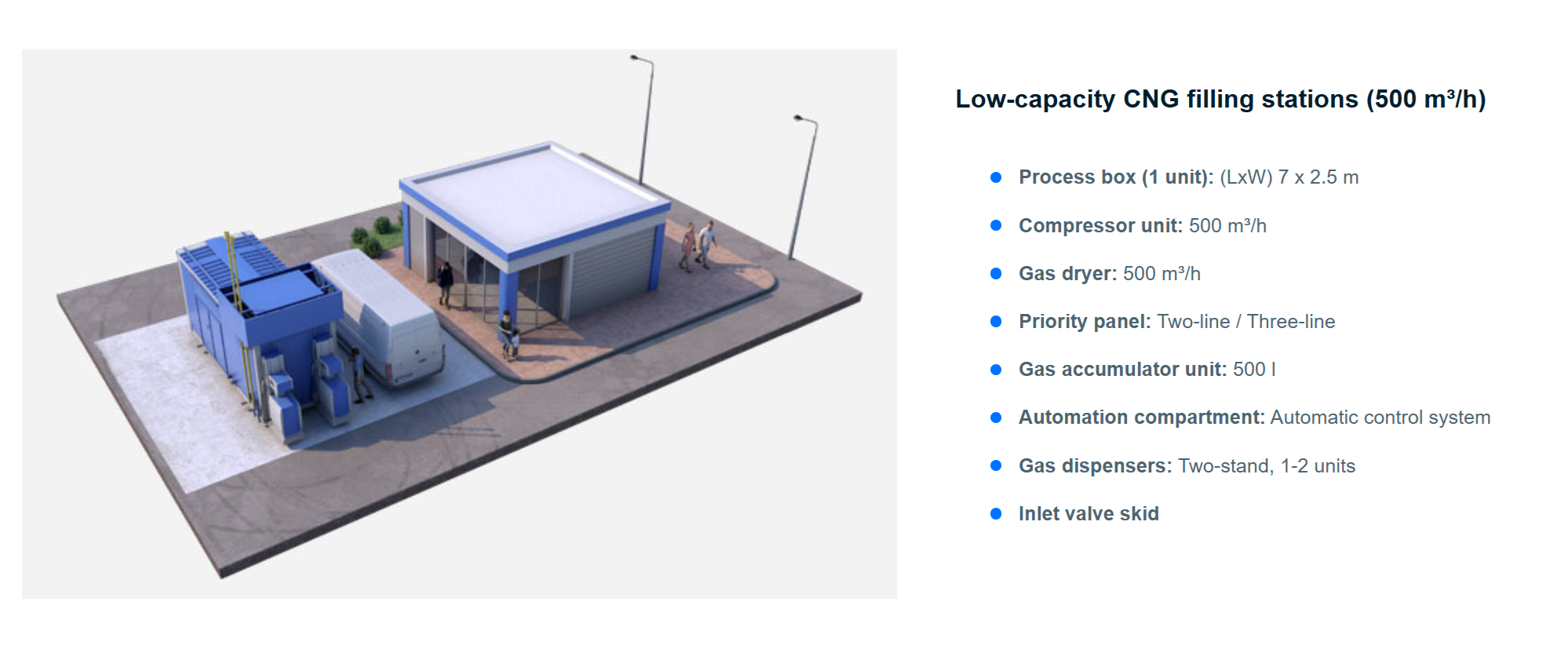

Illustrative layout · not to scale
Original reference drawing (English) ↗A · Compact 500
The 17.5 m² figure covers the process box only, excluding lanes, access, clearances and ancillary equipment.
Priority panel: two-line / three-line
Automatic control system and inlet valve skid included in the references.
Blackfield Energies
Compare specifications
| Configuration | A · Compact 500 | B · Buffered 500 | C · Mid-range 1000 / 1200 | D · Twin 2000 / 2400 | E · Twin + extended buffer | F · Triple 3000 |
|---|---|---|---|---|---|---|
| Listed compressor flow | 500 m³/h | 500 m³/h | 1000 / 1200 m³/h | 2000 / 2400 m³/h | 2000 / 2400 m³/h | 3000 m³/h |
| Compressor arrangement | 500 m³/h · unit count not stated | 500 m³/h · unit count not stated | 1 × 1,000 / 1,200 m³/h | 2 × 1,000 / 2 × 1,200 m³/h | 2 × 1,000 / 2 × 1,200 m³/h | 3 × 1,000 m³/h |
| Dryer rating | 500 m³/h | 500 m³/h | 1,000 / 1,500 m³/h | 2,000 / 2,500 m³/h | 2,000 / 2,500 m³/h | 3,000 m³/h |
| Process box · L × W | 7 × 2.5 m | 9 × 2.5 m | 12 × 2.5 m | 15 × 2.5 m | 12 × 2.5 m + 8 × 2.5 m | 2 × 12 × 2.5 m |
| Derived box area | 17.5 m² | 22.5 m² | 30.0 m² | 37.5 m² | 50.0 m² | 60.0 m² |
| Accumulator volume | 500 L | 2,000 L | 2,000 / 2,500 / 3,000 L | 2,000 / 2,500 L | 4,000 / 5,000 / 6,000 L | 3,000 L |
| Dispenser units | 1–2 | 1–2 | 2–3 | 3–4 | 3–4 | 3–6 |
We use these configurations as design references. The 500 m³/h options sit outside our current financial station mix. We will confirm final specifications with suppliers before procurement.
The reference describes dispensers as “two-stand”; nozzle count requires supplier confirmation.
Blackfield Energies
System architecture
Gas inlet
Confirm available flow, minimum and maximum inlet pressure, gas composition, isolation and measurement requirements. The references list an inlet valve skid without a defined rating.
Blackfield Energies
Capacity planner
Indicative daily volume
Theoretical volume = selected flow × hours × utilisation. This standalone tool does not recalculate the financial model. Sales ramp and capacity utilisation are different measures; preserve gas reference conditions.
Blackfield Energies
Engineering assurance
We will confirm the applicable standards and Nigerian approval requirements with our project specialists and the responsible authorities. The references here do not represent a certification of our company or facilities.
System interfaces
Define capacity, demand profile, gas conditions, operating envelope and availability objectives. Evidence: agreed design basis, customer duties and supply assumptions.
Commissioning & acceptance
Agree acceptance criteria and verify readiness before service. Evidence: completed tests, closed critical defects, training, emergency drills and formal handover.
